SP-G12/132HG 645-675W

Name: SP-G12/132HG 645-675W
Brand: Solar N Plus
SKU: 59517
Price: 0.69147 CNY
Availability: InStock

Solar N Plus New Energy Tech. Co., Ltd

가격:

최저가격 ₩134 / Wp

Price per piece
Minimum Order	1+ 조각
Lead Time	14 일
645	₩86,500

배터리기술:	PERC
공율범위:	645 ~ 675 Wp
지역:	중국

제조업체에 문의

참고: 귀하의 문의가 Solar N Plus New Energy Tech. Co., Ltd로 직접 발송이 될 것입니다.

제품 설명:

Energy density is increased by utilizing multi-busbar and half-cut technologies
Overall module efficiency up to 21.7%
Passed the test under conditions 3 times higher than the IEC standard
12-year material warranty, 25-year power warranty
Certified for 2400 Pa wind load and 5400 Pa snow load

제품 정보
회사 프로필

제품특성

유형

단결정

모델명

645

650

655

660

665

670

675

보증

제품보증연한

12 년

출력 보증

30년 동안 84.95% 이상의 효율

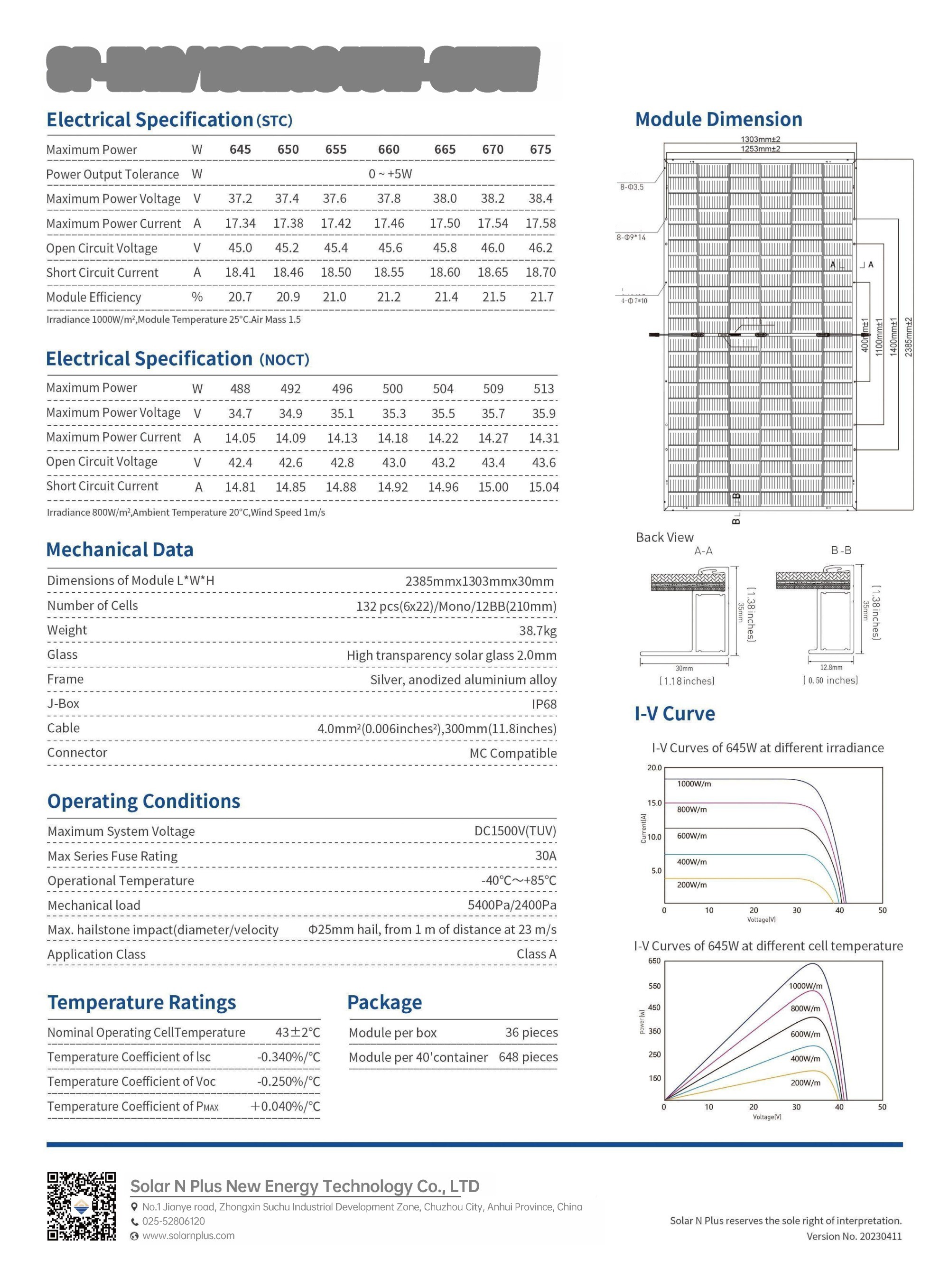

전기적 특성 (STC)

최대출력(Pmax)

645 Wp

650 Wp

655 Wp

660 Wp

665 Wp

670 Wp

675 Wp

최대전압(Vmpp)

37.2 V

37.4 V

37.6 V

37.8 V

38 V

38.2 V

38.4 V

최대전류(Impp)

17.34 A

17.38 A

17.42 A

17.46 A

17.5 A

17.54 A

17.58 A

개방전압(Voc)

45 V

45.2 V

45.4 V

45.6 V

45.8 V

46 V

46.2 V

단락전류(Isc)

18.41 A

18.46 A

18.5 A

18.55 A

18.6 A

18.65 A

18.7 A

모듈 호률

20.7 %

20.9 %

21 %

21.2 %

21.4 %

21.5 %

21.7 %

출력 허용오차 (+)

+ 1 %

표준 테스트 조건(STC): AM 1.5, 방사조도 1000W/m², 셀오돈 25°C

전기적 특성 (NOCT)

최대출력(Pmax)

488 Wp

492 Wp

496 Wp

500 Wp

504 Wp

509 Wp

513 Wp

최대전압(Vmpp)

34.7 V

34.9 V

35.1 V

35.3 V

35.5 V

35.7 V

35.9 V

최대전류(Impp)

14.05 A

14.09 A

14.13 A

14.18 A

14.22 A

14.27 A

14.31 A

개방전압(Voc)

42.4 V

42.6 V

42.8 V

43 V

43.2 V

43.4 V

43.6 V

단락전류(Isc)

14.81 A

14.85 A

14.88 A

14.92 A

14.96 A

15 A

15.04 A

온도

43±2 °C

공칭 작동 셀 온도(NOCT): 방사 조도 800W/m², AM 1.5, 주위온도 20℃, 풍속1m/s

열 특성

작동 온도 범위

-40~85 °C

온도 계수(Pmax)

-0.34 %/°C

온도 계수(Voc)

-0.25 %/°C

온도 계수(Isc)

0.04 %/°C

시스템 통합 파라미터

최대 시스템 전압

1500 V

퓨즈의 정격전류

30 A

기계적 특성

모듈 외형 (H/W/D)

2385x1303x30 mm

무게

38.7 kg

셀크기

210×210 mm

설수량

132

유리의 두께

3.2 mm

프레임

양극산화 알루미늄

정션박스 보호등급

IP 68

케이블 단면도

4 mm²

커넥터 케이블 길이

300 mm

PDF

제품 사양서 다운받기

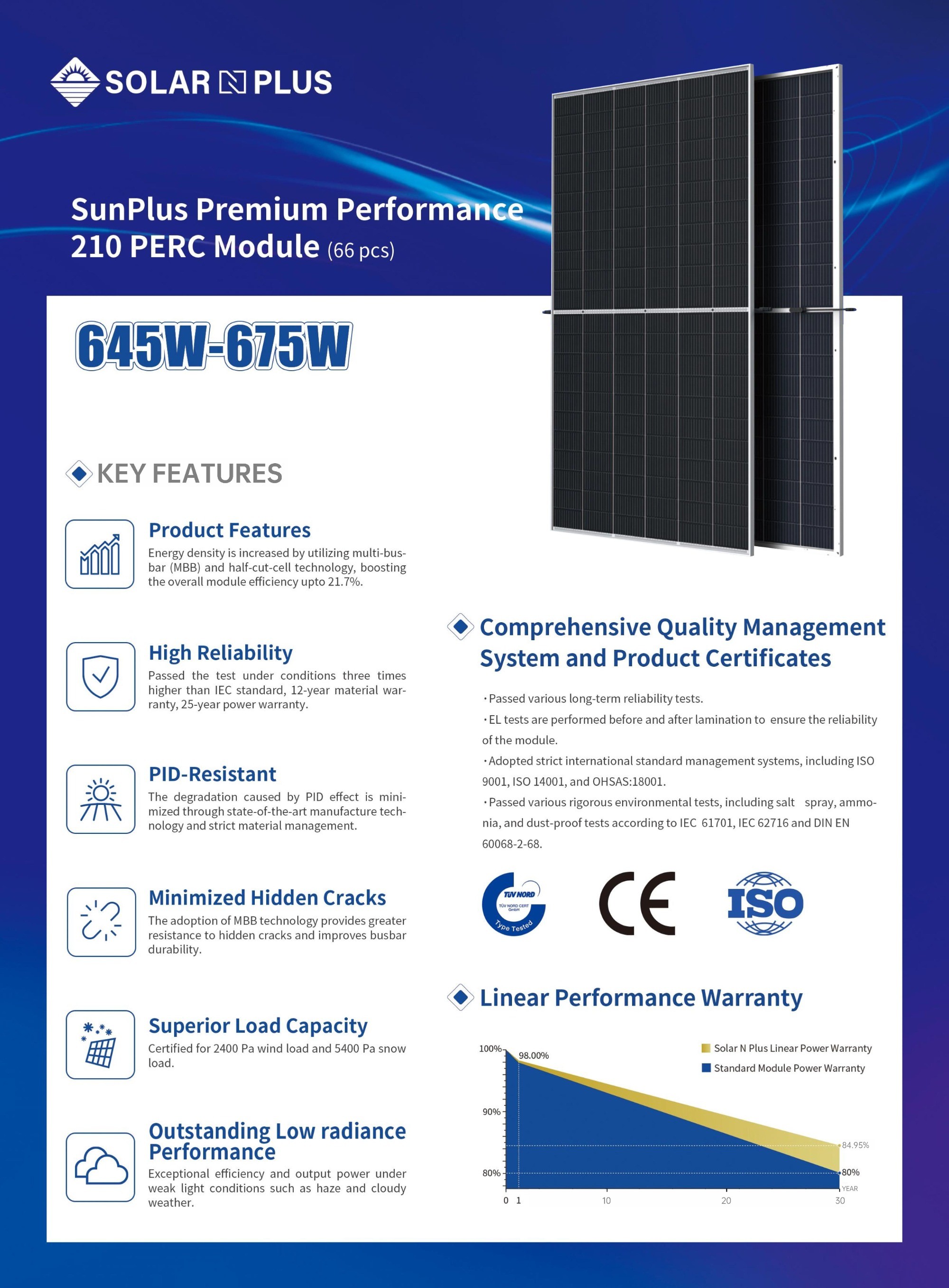

Solar N Plus — Best Solar Solution for You

Ultra-high Efficiency

PERC Solar Module

Energy density is increased by utilizing MBB & Half-cut cell technology, boosting the overall module efficiency upto 21.7%

Advanced cell production technology and rigorous material control can minimize the attenuation caused by PID

2400Pa wind load & 5400Pa snow load

Exceptional efficiency and output power under weak light conditions such as haze and cloudy weather

10GW N-type TOPCon solar cell and module facilities available in July 2023
2GW PERC solar cell and module capacity available right now

Research and Development Strength

＞26% Cell efficiency has surpassed 26%
80+ Authorized Patents
200+ Pending Patents
25% of employees are dedicated to R&D
7 of the employees hold PhD degrees
R&D investment accounts for 5% of sales revenue
